Pull the Lever

A custom HTML template for Pull the Lever for in-app messages.

Pull the Lever is a three-reel slot machine. The user pulls the lever, symbols blur past, the reels stop one after another on a matching set, and a reward is revealed with a code they can copy straight to their clipboard. It is best suited for promotional campaigns such as first-purchase incentives, cart recovery, loyalty rewards, and seasonal sales where a chance-based reward creates excitement and encourages participation.

Configure Pull the Lever using Custom HTML Code

📘
This Is a Code Template, Not a Product Feature

Pull the Lever is not a widget you enable in the Netcore dashboard, and it will not appear in any menu. It is a block of HTML that you copy from this page and paste into the Code of HTML Editor

Netcore does not host, version, or update this template on your behalf.

You are copying code out of this page and pasting it into a html code editor for campaign. Follow these steps in order.

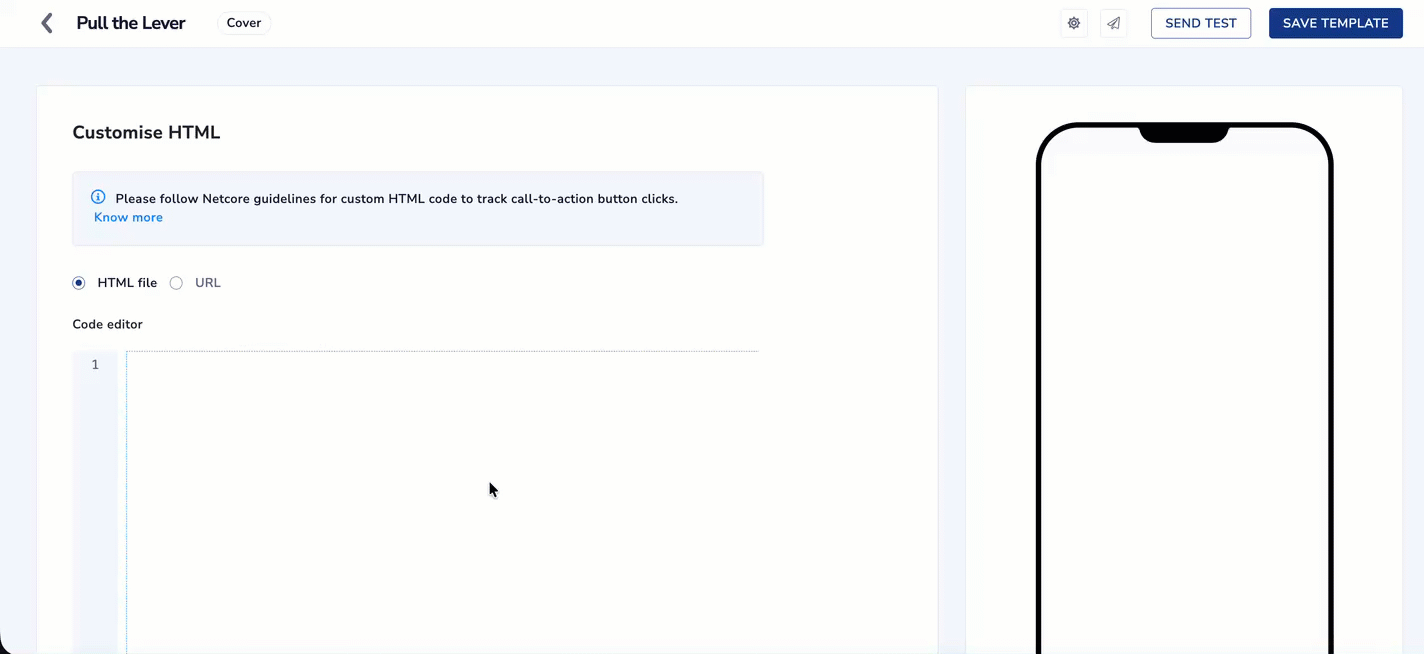

Create an in-app template. See Custom HTML for the full template creation flow.
Copy the entire code block from the Sample HTML Code section on this page, from the first line to the last. Partial copies will not work.
Paste it into the Code Editor and select Validate.
Edit only the CONFIG block at the top of the code. This is where your symbols, rewards, colors, copy, and deeplink go. See Editable and Non Editable Section in Custom HTML Code before you change anything.
Replace the placeholder deeplink. The template ships with netcore://your-deeplink-here, which does nothing. Set claimButton.url to a real deeplink registered in your app.
Preview the message in the right pane, then schedule and publish.

📘
Set Up the Underlying Offer Separately
This template displays a reward code and copies it to the user's clipboard. It does not create coupons, apply discounts, or deduct inventory. Create the actual offer in your commerce platform or in Coupon

🚧
Every Pull Wins, and All Three Reels Always Match
The template picks one reward from your weighted rewards list, then lands all three reels on that reward's symbol. There is no losing combination and no near-miss. Every user who pulls the lever gets three matching symbols and a reward.
Write your copy accordingly. Do not promise a jackpot the machine cannot fail to deliver, and do not imply the user might walk away with nothing.

Sample HTML Code

<!DOCTYPE html>
<html lang="en">

<head>
  <!-- CUSTOMIZE ZONE - Configurable Settings -->
  <!-- Everything inside CONFIG is safe to edit. -->
  <script>
    const CONFIG = {
      // Show the X close button (true = show, false = hide)
      includeDismissButton: true,

      // Background gradient of the card
      background: "linear-gradient(180deg, #2A0845 0%, #10041C 100%)",

      // Fire confetti when the reels stop on a win
      enableConfettiOnWin: true,

      // How long the reels spin (in seconds)
      spinDurationSeconds: 2.2,

      // The symbols that fly past while the reels spin.
      // Emoji are written as Unicode escapes so the file stays
      // ASCII-only and passes btoa() in the Netcore SDK.
      // Cherry=\uD83C\uDF52, Bell=\uD83D\uDD14, Diamond=\uD83D\uDC8E
      // Lemon=\uD83C\uDF4B, Star=\u2B50, Seven=\u0037\uFE0F\u20E3
      fillerSymbols: [
        "\uD83C\uDF52",
        "\uD83D\uDD14",
        "\uD83D\uDC8E",
        "\uD83C\uDF4B",
        "\u2B50",
        "\u0037\uFE0F\u20E3"
      ],

      // Pull button
      pullButton: {
        enabled: true,
        text: "Pull the Lever",
        background: "linear-gradient(180deg, #B54BFF 0%, #7A1FCC 100%)",
        color: "#ffffff",
      },

      // Claim button (shown after the win)
      claimButton: {
        enabled: true,
        text: "Claim Reward",
        background: "linear-gradient(180deg, #FFD724 0%, #C68D07 100%)",
        color: "#1d1d1d",
        // Netcore deeplink fired on claim. Replace with your app deeplink.
        url: "netcore://your-deeplink-here",
        // OPTIONAL extra data sent to the app alongside the click.
        payload: { campaign: "pull_the_lever" },
      },

      // Main headline (supports HTML like <br>)
      mainTitle: {
        text: "Try Your Luck <br>&amp; Win Big!",
        fontSize: "24px",
        color: "#ffffff",
      },

      // Subtitle / description
      subtitle: {
        text: "Pull the lever and match the symbols to unlock your reward!",
        fontSize: "14px",
        color: "#e8d5ff",
      },

      // Copy-instruction text colors
      copyInstruction: {
        color: "#606060",
        copiedColor: "#B54BFF",
      },

      // Possible rewards.
      // symbol uses the same Unicode escape form as fillerSymbols above.
      // Cherry  = "\uD83C\uDF52"
      // Bell    = "\uD83D\uDD14"
      // Diamond = "\uD83D\uDC8E"
      // Seven   = "\u0037\uFE0F\u20E3"
      rewards: [
        {
          symbol: "\uD83C\uDF52",
          title: "Congrats! You just won 10% OFF!",
          value: "DISCOUNT10",
          subtitle: "Use DISCOUNT10 at checkout to get 10% off your order. Valid through April 30.",
          probability: 0.4,
        },
        {
          symbol: "\uD83D\uDD14",
          title: "Congrats! You just won Free Shipping!",
          value: "FREESHIP",
          subtitle: "Use FREESHIP at checkout to enjoy free shipping on your order. Valid through April 30.",
          probability: 0.3,
        },
        {
          symbol: "\uD83D\uDC8E",
          title: "Congrats! You just won a $10 Credit!",
          value: "CREDIT10",
          subtitle: "Congratulations! $10 store credit will be applied to your account.",
          probability: 0.2,
        },
        {
          symbol: "\u0037\uFE0F\u20E3",
          title: "JACKPOT! You just won a Gift Card!",
          value: "GIFT100",
          subtitle: "You will receive your $100 gift card via email. Valid through April 30.",
          probability: 0.1,
        },
      ],
    };
  </script>
  <!-- END CUSTOMIZE ZONE -->

  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
  <title>Pull the Lever - Win Big!</title>

  <!-- DO NOT MODIFY - Netcore Smartech In-App SDK wiring -->
  <!-- Order matters: jQuery then Smartech App SDK then init(). -->
  <script src="https://code.jquery.com/jquery-3.4.1.min.js"
    integrity="sha256-CSXorXvZcTkaix6Yvo6HppcZGetbYMGWSFlBw8HfCJo=" crossorigin="anonymous"></script>
  <script src="https://cdnt.netcoresmartech.com/smartech-app-sdk/scripts/prod/smartech-app-sdk.js?v=1.0.1"></script>
  <script>
    SmartechAppSDK.init();
  </script>
  <!-- END SDK wiring -->

  <style>
    :root {
      --shimmer-hue-1: 280deg;
      --shimmer-hue-2: 300deg;
    }

    @property --mask {
      syntax: "<angle>";
      inherits: false;
      initial-value: 33deg;
    }

    @keyframes spin {
      0% { --mask: 0deg; }
      100% { --mask: 360deg; }
    }

    html,
    body {
      height: 100%;
      width: 100%;
      margin: 0;
      display: flex;
      align-items: center;
      justify-content: space-evenly;
      font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto,
        Oxygen, Ubuntu, Cantarell, "Open Sans", "Helvetica Neue", sans-serif;
    }

    .modal {
      display: flex;
      flex-direction: column;
      align-items: center;
      height: 100%;
      max-height: 580px;
      max-width: 320px;
      padding: 0 5%;
      justify-content: space-evenly;
      width: 100%;
      color: #ffffff;
      text-align: center;
      background: linear-gradient(180deg, #2A0845 0%, #10041C 100%);
      border-radius: 36px;
      position: relative;
      box-sizing: border-box;
      overflow: hidden;
    }

    .modal.reward { max-height: 455px; }

    .reward-title { font-size: 24px; font-weight: 700; }
    .title, .reward-title { margin-top: 30px; }

    .close-btn {
      position: absolute;
      top: 18px;
      right: 18px;
      appearance: none;
      border: 0;
      background: none;
      color: #ffffff;
      font-size: 32px;
      line-height: 1;
      cursor: pointer;
      z-index: 20;
    }

    h1 { margin: 0; font-size: 24px; font-weight: 700; }
    p { margin: 0; font-size: 14px; line-height: 1.45; }

    /* Slot machine */
    .machine {
      display: flex;
      align-items: center;
      gap: 10px;
    }

    .machine-body {
      display: flex;
      gap: 8px;
      padding: 16px 14px;
      border-radius: 18px;
      background: #1C0B2E;
      border: 3px solid #C9A227;
      box-shadow: inset 0 0 18px rgba(0, 0, 0, 0.6), 0 4px 20px rgba(0, 0, 0, 0.4);
    }

    .reel-window {
      width: 62px;
      height: 74px;
      overflow: hidden;
      border-radius: 10px;
      background: #0E0618;
      position: relative;
      box-shadow: inset 0 6px 10px rgba(0, 0, 0, .55), inset 0 -6px 10px rgba(0, 0, 0, .55);
    }

    .reel-strip {
      display: flex;
      flex-direction: column;
      transform: translateY(0);
    }

    .reel-strip .cell {
      height: 74px;
      display: flex;
      align-items: center;
      justify-content: center;
      font-size: 40px;
      line-height: 1;
      flex: none;
    }

    .lever {
      width: 16px;
      height: 120px;
      position: relative;
      flex: none;
      cursor: pointer;
    }

    .lever .stick {
      position: absolute;
      left: 50%;
      bottom: 12px;
      transform: translateX(-50%);
      width: 6px;
      height: 84px;
      background: linear-gradient(180deg, #cfcfcf, #7c7c7c);
      border-radius: 3px;
      transform-origin: bottom center;
      transition: transform .25s ease-in;
    }

    .lever .knob {
      position: absolute;
      left: 50%;
      top: 0;
      transform: translateX(-50%);
      width: 22px;
      height: 22px;
      border-radius: 50%;
      background: radial-gradient(circle at 35% 30%, #ff7a9c, #d3114b);
      box-shadow: 0 2px 6px rgba(0, 0, 0, .5);
      transition: top .25s ease-in;
    }

    .lever .base {
      position: absolute;
      left: 50%;
      bottom: 0;
      transform: translateX(-50%);
      width: 16px;
      height: 14px;
      border-radius: 4px;
      background: #4a4a4a;
    }

    .lever.pulled .stick { transform: translateX(-50%) scaleY(0.35); }
    .lever.pulled .knob { top: 56px; }

    .reward-wrapper {
      display: none;
      width: 100%;
      position: relative;
      border-radius: 18px;
      overflow: visible;
    }

    .reward-wrapper.visible { display: block; }

    .reward-box {
      display: flex;
      flex-direction: column;
      align-items: center;
      gap: 6px;
      padding: 16px 0;
      background: #ffffff;
      color: #1d1d1d;
      border-radius: 18px;
      width: 100%;
      box-sizing: border-box;
      cursor: pointer;
    }

    .reward-main { font-size: 24px; font-weight: 700; }
    .reward-subtext { padding: 0 20px; font-size: 14px; font-weight: 500; }

    .copy-instruction {
      font-family: 'Proxima Nova', -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto,
        Oxygen, Ubuntu, Cantarell, "Open Sans", "Helvetica Neue", sans-serif;
      font-weight: 500;
      font-size: 14px;
      line-height: 100%;
      text-align: center;
    }

    .copy-btn {
      display: inline;
      appearance: none;
      border: none;
      background: none;
      cursor: pointer;
      font-size: 24px;
      line-height: 1;
      color: #1d1d1d;
      transition: transform 0.1s ease-in-out;
    }

    .copy-btn:active { transform: scale(0.9); }

    .action-btn {
      width: fit-content;
      padding: 12.5px 40px;
      border: none;
      border-radius: 14px;
      background: #ffffff;
      color: #1d1d1d;
      font-size: 16px;
      font-weight: 700;
      cursor: pointer;
    }

    .action-btn:disabled { opacity: 0.6; cursor: default; }

    @keyframes pulsate {
      0% { transform: scale(1); }
      50% { transform: scale(1.05); }
      100% { transform: scale(1); }
    }

    .pulsate-animation { animation: pulsate 1.5s 3; }

    .shimmer {
      position: absolute;
      inset: -40px;
      border-radius: inherit;
      mix-blend-mode: plus-lighter;
      pointer-events: none;
      mask-image: conic-gradient(from var(--mask, 0deg),
          transparent 0%, transparent 10%, black 36%, black 45%,
          transparent 50%, transparent 60%, black 85%, black 95%, transparent 100%);
      mask-size: cover;
      animation: spin 3s linear infinite both -0.5s;
      z-index: 10;
    }

    .shimmer::before, .shimmer::after {
      content: "";
      border-radius: inherit;
      position: absolute;
      inset: 40px;
      opacity: 1;
    }

    .shimmer::before {
      box-shadow: 0 0 2px 1px hsl(var(--shimmer-hue-1) 90% 58%),
        0 0 9px 6px hsl(var(--shimmer-hue-2) 70% 60%);
      z-index: -1;
    }

    .reward-wrapper.visible .shimmer { opacity: 1; visibility: visible; }
    .reward-wrapper.shimmer-active .shimmer { animation: spin 2s linear infinite; }
  </style>
</head>

<body>
  <!-- Play screen -->
  <div class="modal" id="playModal">
    <!-- data-smt-action="SMTInAppClose" lets the Netcore SDK close
         the message and record the close event automatically. -->
    <button class="close-btn" aria-label="Close" data-smt-action="SMTInAppClose">&times;</button>

    <h1 class="title" id="mainTitle"></h1>
    <p id="subtitle"></p>

    <div class="machine">
      <div class="machine-body" id="machineBody">
        <div class="reel-window"><div class="reel-strip" id="reel0"></div></div>
        <div class="reel-window"><div class="reel-strip" id="reel1"></div></div>
        <div class="reel-window"><div class="reel-strip" id="reel2"></div></div>
      </div>
      <div class="lever" id="lever">
        <div class="stick"></div>
        <div class="knob"></div>
        <div class="base"></div>
      </div>
    </div>

    <button class="action-btn" id="pullButton">Pull the Lever</button>
  </div>

  <!-- Reward screen -->
  <div class="modal reward" id="rewardModal" style="display: none;">
    <button class="close-btn" aria-label="Close" data-smt-action="SMTInAppClose">&times;</button>

    <h1 class="reward-title" id="rewardTitle"></h1>
    <div id="rewardSubtext" class="reward-subtext"></div>

    <div class="reward-wrapper" id="rewardWrapper">
      <span class="shimmer"></span>
      <div class="reward-box ticket" id="rewardBox">
        <div class="reward-main">
          <span id="rewardText"></span>
          <button id="copyBtn" class="copy-btn" title="Copy to clipboard">
            <svg width="20" height="21" viewBox="0 0 20 21" fill="none" xmlns="http://www.w3.org/2000/svg">
              <path fill-rule="evenodd" clip-rule="evenodd"
                d="M13 13.8444V17.8444C13 18.4444 12.6 18.8444 12 18.8444H3C2.4 18.8444 2 18.4444 2 17.8444V8.84442C2 8.24442 2.4 7.84442 3 7.84442H7V3.84442C7 3.24442 7.4 2.84442 8 2.84442H17C17.6 2.84442 18 3.24442 18 3.84442V12.8444C18 13.4444 17.6 13.8444 17 13.8444H13ZM12 13.8444H8C7.4 13.8444 7 13.4444 7 12.8444V8.84442H3V17.8444H12V13.8444ZM17 3.84442H8V12.8444H17V3.84442Z"
                fill="#4A4C4C" />
            </svg>
          </button>
        </div>
        <div class="copy-instruction">Click here to copy the code!</div>
      </div>
    </div>

    <button class="action-btn" id="claimButton">Claim Reward</button>
  </div>

  <script>
    (function () {
      var playModal = document.getElementById('playModal');
      var rewardModal = document.getElementById('rewardModal');
      var mainTitleEl = document.getElementById('mainTitle');
      var subtitleEl = document.getElementById('subtitle');
      var machineBody = document.getElementById('machineBody');
      var lever = document.getElementById('lever');
      var pullButton = document.getElementById('pullButton');
      var claimButton = document.getElementById('claimButton');
      var rewardWrapper = document.getElementById('rewardWrapper');
      var rewardBox = document.getElementById('rewardBox');
      var rewardTitleEl = document.getElementById('rewardTitle');
      var rewardTextEl = document.getElementById('rewardText');
      var rewardSubtextEl = document.getElementById('rewardSubtext');
      var copyBtn = document.getElementById('copyBtn');
      var copyInstructionEl = document.querySelector('.copy-instruction');
      var closeButtons = document.querySelectorAll('.close-btn');
      var reels = [
        document.getElementById('reel0'),
        document.getElementById('reel1'),
        document.getElementById('reel2'),
      ];
      var isPlaying = false;
      var CELL = 74;

      // DO NOT MODIFY - Netcore SDK interaction helper
      function netcoreTrackClick(deeplink, payload) {
        try {
          if (window.SmartechAppSDK && typeof SmartechAppSDK.trackInAppClick === 'function') {
            SmartechAppSDK.trackInAppClick(deeplink, payload || null);
            return;
          }
        } catch (e) {}
        if (deeplink) window.location.href = deeplink;
      }
      // END SDK helper

      // Apply Config
      if (CONFIG.background) playModal.style.background = CONFIG.background;
      if (CONFIG.background) rewardModal.style.background = CONFIG.background;

      if (!CONFIG.includeDismissButton && closeButtons.length > 0) {
        closeButtons.forEach(function(btn) { btn.style.display = 'none'; });
      }

      mainTitleEl.innerHTML = CONFIG.mainTitle.text;
      mainTitleEl.style.fontSize = CONFIG.mainTitle.fontSize;
      mainTitleEl.style.color = CONFIG.mainTitle.color;

      subtitleEl.textContent = CONFIG.subtitle.text;
      subtitleEl.style.fontSize = CONFIG.subtitle.fontSize;
      subtitleEl.style.color = CONFIG.subtitle.color;

      if (copyInstructionEl && CONFIG.copyInstruction.color) {
        copyInstructionEl.style.color = CONFIG.copyInstruction.color;
      }

      pullButton.textContent = CONFIG.pullButton.text;
      pullButton.style.background = CONFIG.pullButton.background;
      pullButton.style.color = CONFIG.pullButton.color;
      if (!CONFIG.pullButton.enabled) pullButton.style.display = 'none';

      var rewards = CONFIG.rewards;

      // Reward selection
      function chooseReward() {
        var total = rewards.reduce(function(acc, r) { return acc + r.probability; }, 0);
        var rand = Math.random() * total;
        for (var i = 0; i < rewards.length; i++) {
          if (rand < rewards[i].probability) return rewards[i];
          rand -= rewards[i].probability;
        }
        return rewards[rewards.length - 1];
      }

      // Build reels
      function buildReel(reelEl, finalSymbol, loops) {
        reelEl.innerHTML = '';
        reelEl.style.transition = 'none';
        reelEl.style.transform = 'translateY(0)';

        var symbols = [];
        for (var l = 0; l < loops; l++) {
          symbols = symbols.concat(CONFIG.fillerSymbols);
        }
        symbols.push(finalSymbol);

        symbols.forEach(function(s) {
          var cell = document.createElement('div');
          cell.className = 'cell';
          cell.textContent = s;
          reelEl.appendChild(cell);
        });

        return symbols.length;
      }

      // Idle state
      reels.forEach(function(reelEl, i) {
        var idle = CONFIG.fillerSymbols[i % CONFIG.fillerSymbols.length];
        buildReel(reelEl, idle, 0);
      });

      // Play logic
      function play() {
        if (isPlaying) return;
        isPlaying = true;
        pullButton.disabled = true;

        lever.classList.add('pulled');
        setTimeout(function() { lever.classList.remove('pulled'); }, 450);

        var selectedReward = chooseReward();
        var duration = CONFIG.spinDurationSeconds || 2.2;
        var stagger = 0.35;
        var finished = 0;

        reels.forEach(function(reelEl, i) {
          var loops = 4 + i * 2;
          var cellCount = buildReel(reelEl, selectedReward.symbol, loops);
          var distance = (cellCount - 1) * CELL;

          void reelEl.offsetHeight;

          var reelDuration = duration + i * stagger;
          reelEl.style.transition = 'transform ' + reelDuration + 's cubic-bezier(0.12, 0.6, 0.15, 1)';
          reelEl.style.transform = 'translateY(-' + distance + 'px)';

          reelEl.addEventListener('transitionend', function onEnd() {
            reelEl.removeEventListener('transitionend', onEnd);
            finished++;
            if (finished === reels.length) {
              isPlaying = false;
              showReward(selectedReward);
            }
          });
        });
      }

      function showReward(reward) {
        setTimeout(function() {
          rewardTitleEl.textContent = reward.title;
          rewardTextEl.textContent = reward.value;
          rewardSubtextEl.textContent = reward.subtitle;
          rewardWrapper.classList.add('visible');
          rewardWrapper.classList.add('shimmer-active');
          rewardBox.classList.add('pulsate-animation');

          var shimmerElement = rewardWrapper.querySelector('.shimmer');
          if (shimmerElement) {
            shimmerElement.style.animation = 'none';
            shimmerElement.offsetHeight;
            shimmerElement.style.animation = 'spin 2s linear infinite';
          }

          playModal.style.display = 'none';
          rewardModal.style.display = 'flex';

          if (CONFIG.claimButton.enabled) {
            claimButton.textContent = CONFIG.claimButton.text;
            claimButton.style.background = CONFIG.claimButton.background;
            claimButton.style.color = CONFIG.claimButton.color;
            claimButton.addEventListener('click', function() {
              netcoreTrackClick(CONFIG.claimButton.url, CONFIG.claimButton.payload);
            }, { once: true });
          } else {
            claimButton.style.display = 'none';
          }

          if (CONFIG.enableConfettiOnWin) fireConfetti();
        }, 700);
      }

      // Copy to clipboard
      function copyToClipboard() {
        var text = rewardTextEl.textContent;
        if (!text) return;
        if (navigator.clipboard && navigator.clipboard.writeText) {
          navigator.clipboard.writeText(text).then(showCopySuccess).catch(function() { fallbackCopy(text); });
        } else {
          fallbackCopy(text);
        }
      }

      function copyRewardText(e) {
        if (e && e.target === copyBtn || (e.target.closest && e.target.closest('#copyBtn'))) return;
        copyToClipboard();
      }

      copyBtn.addEventListener('click', function(e) {
        e.stopPropagation();
        copyToClipboard();
      });
      rewardWrapper.addEventListener('click', copyRewardText);

      function showCopySuccess() {
        copyInstructionEl.textContent = "Code copied!";
        copyInstructionEl.style.color = CONFIG.copyInstruction.copiedColor;
      }

      function fallbackCopy(text) {
        var input = document.createElement('input');
        input.setAttribute('readonly', '');
        input.setAttribute('value', text);
        input.style.position = 'absolute';
        input.style.left = '-9999px';
        document.body.appendChild(input);
        input.select();
        document.execCommand('copy');
        document.body.removeChild(input);
        showCopySuccess();
      }

      // Confetti
      function fireConfetti() {
        var colors = ["#FFC700", "#FF0000", "#B54BFF", "#41F4BC", "#FFD724", "#FF61E6"];
        var particleCount = 120;
        var gravity = 0.3;
        var confettiCanvas = document.createElement('canvas');
        confettiCanvas.style.position = 'fixed';
        confettiCanvas.style.top = '0';
        confettiCanvas.style.left = '0';
        confettiCanvas.style.width = '100%';
        confettiCanvas.style.height = '100%';
        confettiCanvas.style.pointerEvents = 'none';
        confettiCanvas.style.zIndex = '9999';
        document.body.appendChild(confettiCanvas);

        var confCtx = confettiCanvas.getContext('2d');
        confettiCanvas.width = window.innerWidth;
        confettiCanvas.height = window.innerHeight;
        var particles = [];
        var randomRange = function(min, max) { return Math.random() * (max - min) + min; };

        for (var i = 0; i < particleCount; i++) {
          particles.push({
            x: confettiCanvas.width / 2,
            y: confettiCanvas.height * 0.6,
            w: randomRange(6, 12),
            h: randomRange(8, 16),
            angle: randomRange(0, 360),
            tiltAngleSpeed: randomRange(0.05, 0.12),
            color: colors[Math.floor(Math.random() * colors.length)],
            velocityX: randomRange(-9, 9),
            velocityY: randomRange(-16, -8),
            opacity: 1,
            decay: randomRange(0.0075, 0.015),
          });
        }

        var update = function() {
          confCtx.clearRect(0, 0, confettiCanvas.width, confettiCanvas.height);
          particles.forEach(function(p, idx) {
            p.x += p.velocityX;
            p.y += p.velocityY;
            p.velocityY += gravity;
            p.opacity -= p.decay;
            p.angle += p.tiltAngleSpeed * 180 / Math.PI;
            if (p.opacity <= 0 || p.y > confettiCanvas.height + 20) particles.splice(idx, 1);
          });
          draw();
          if (particles.length) requestAnimationFrame(update);
          else confettiCanvas.remove();
        };

        var draw = function() {
          particles.forEach(function(p) {
            confCtx.save();
            confCtx.globalAlpha = Math.max(p.opacity, 0);
            confCtx.fillStyle = p.color;
            confCtx.translate(p.x, p.y);
            confCtx.rotate(p.angle * Math.PI / 180);
            confCtx.fillRect(-p.w / 2, -p.h / 2, p.w, p.h);
            confCtx.restore();
          });
        };

        update();
      }

      // Wire up triggers
      pullButton.addEventListener('click', play);
      lever.addEventListener('click', play);
      machineBody.addEventListener('click', play);
    })();
  </script>
</body>

</html>

Editable and Non Editable Section in Custom HTML Code

The template is one HTML file with three parts. Only the first one is yours to change.

Part	Think of it as	Do you edit it?
The Settings Block	The control panel: colors, text, symbols, prizes, links.	Yes. This is the only part you edit.
The Netcore Connection	The plug that connects the game to the Netcore platform.	No. Never.
The Game Engine	The machinery that builds the reels, spins them, and picks a winner.	No. Developers only.

If you are editing anything outside the Settings Block to run a campaign, stop. What you need is already inside it.

📁 Structure of the Template

<script>

const CONFIG = { ... }

</script>

✓ Editable section
The Settings Block. Update your symbols, rewards, colors, text, and deeplinks here.



<script src="jquery..."></script>

<script src="smartech-app-sdk..."></script>

✕ Do not edit
The Netcore Connection. Loads the required libraries and Netcore SDK.

<style> ... </style>

✕ Do not edit
Defines the machine body, reel windows, lever animation, and styling.

<body> ... </body>

✕ Do not edit
Contains the three reel windows and the lever. Symbols are rendered by the engine.

<script> ...engine... </script>

✕ Do not edit
The Game Engine. Controls reel building, spin timing, reward selection, and SDK interactions.

What the Game Engine Does

You never edit this, but it helps to know what it is doing. The engine reads your settings, picks the winning reward from your weighted odds, builds each reel as a strip of filler symbols ending on the winning symbol, animates the lever, slides all three strips upward, stops them one after another, then swaps to the reward screen and shows the coupon with a copy button.

Each reel is built longer than the one before it, so the first stops soonest and the third stops last. That stagger is what makes the machine feel like a machine rather than three things moving at once.

📘
Important Point to Remember
Remember Changing Values Is Safe, Changing Key Names Is Not!

Inside the CONFIG block, edit the values on the right of each colon. Do not rename the settings themselves. Changing spinDurationSeconds: 2.2 to spinDurationSeconds: 3 is fine. Renaming it to spinDuration: 3 means the template can no longer find it.

Keep the punctuation intact too. A missing comma or quotation mark stops the whole message from rendering.

The code below the CONFIG block is what makes the reels build, spin, and report back to Netcore, which is why DO NOT EDIT it.

🚧
Keep the File ASCII-only
Do not paste emoji, smart quotes, en or em dashes, or currency symbols directly into this file. The creative is base64-encoded before delivery and the encoder fails on characters outside Latin-1.
Every symbol in this template is already written as a unicode escape, such as \uD83C\uDF52 for the cherry. Follow that pattern for any symbol you add.

Components You Must Not Remove

Four parts of the locked zone are worth knowing by name, because removing them is the most common way a campaign breaks.

Component	Why it's required
SDK wiring block (`<head>`)	Loads jQuery and the Netcore Smartech App SDK in the required order.
*data-smt-action="SMTInAppClose"*	Allows the SDK to close the message and record the dismissal event.
netcoreTrackClick()	Tracks the CTA click and opens the configured deeplink.
The 74px reel cell height	The reel window, each symbol cell, and the engine's scroll distance all use the same 74px value. Changing one and not the others leaves symbols stopping half in and half out of the window.

If any of these are missing, the message can still render in the preview pane while failing to close, failing to report, or failing to open your deeplink on a real device.

It is identical in every template, for every customer, on purpose. It is the contract with the platform, not campaign content, so there is nothing campaign-specific in it and no reason to touch it.

Quick Answers

You want to	Do this
Change prizes, odds, or reward codes	Edit the `rewards` list. Nothing else.
Change the symbols that blur past	Edit `fillerSymbols`.
Send winners to a different app screen	Edit `claimButton.url`.
Make one prize far more likely	Raise that prize's `probability` and lower the others toward zero.
Make the reels spin longer	Raise `spinDurationSeconds`.
Change how the reels build or stop	Do not. Raise it with the product team so every template gets the fix.

Update Custom HTML Code for Pull the Lever

You can customize the following five sections to configure the Pull the Lever widget for your In-app message campaign. All of them live inside the CONFIG block.

Layout: Configure the overall appearance and behavior of the widget.

Setting	Description	Example
`includeDismissButton`	Show or hide the close (×) button.	`true`
`background`	Background color or CSS gradient. Applies to both screens.	`"linear-gradient(180deg, #2A0845 0%, #10041C 100%)"`
`enableConfettiOnWin`	Show confetti when the reels stop.	`true`
`spinDurationSeconds`	How long the first reel spins.	`2.2`

📘
The Second and Third Reels Take Longer
spinDurationSeconds sets the time for the first reel only. The second stops roughly a third of a second later, and the third later again. A value of 2.2 means the machine finishes at about three seconds, not 2.2.

Reel Symbols: Choose the symbols that blur past while the reels spin.

Setting	Description
`fillerSymbols`	The list of symbols that scroll past during the spin. Six work well.

Each symbol is written as a unicode escape rather than a pasted character. The shipped set is:

Symbol	Escape
Cherry	`\uD83C\uDF52`
Bell	`\uD83D\uDD14`
Diamond	`\uD83D\uDC8E`
Lemon	`\uD83C\uDF4B`
Star	`\u2B50`
Seven	`\u0037\uFE0F\u20E3`

📘
Include Your Winning Symbols in the Filler Set
A reward's symbol does not have to appear in fillerSymbols, but if it does not, it arrives out of nowhere when the reel stops. Keeping every winning symbol in the filler list makes the spin read as a real machine.

📘
Before the First Pull
The three reels sit showing the first three symbols in your fillerSymbols list, in order. If you reorder the list, you change what the machine looks like at rest.

Text & Typography: Customize the content shown on both screens.

Play Screen

Setting	Description
`mainTitle.text`	Main heading. Supports basic HTML like `<br>`.
`mainTitle.fontSize`	Heading size.
`mainTitle.color`	Heading color.
`subtitle.text`	Supporting text below the heading.
`subtitle.fontSize`	Subtitle size.
`subtitle.color`	Subtitle color.

Reward Screen

Setting	Description
`copyInstruction.color`	Instruction text color before copying.
`copyInstruction.copiedColor`	Color shown after the coupon is copied.

Buttons: Customize the primary actions shown on each screen.

Pull Button

Setting	Description
`pullButton.enabled`	Show or hide the Pull button. Users can still tap the lever or the machine itself.
`pullButton.text`	Button label.
`pullButton.background`	Background color or CSS gradient.
`pullButton.color`	Text color.

Claim Button

Setting	Description
`claimButton.enabled`	Show or hide the Claim button.
`claimButton.text`	Button label.
`claimButton.background`	Background color or CSS gradient.
`claimButton.color`	Text color.
`claimButton.url`	Deep link opened after the reward is claimed.
`claimButton.payload`	Optional payload passed to your app. Use `null` if not required.

📘
Three Ways to Start the Game
The Pull button, the lever, and the machine body all start the spin. Hiding the Pull button does not make the game unplayable, because the lever still works.

Rewards: Each object in the rewards array is one possible outcome.

Field	Description
`symbol`	The symbol all three reels land on for this reward.
`title`	Heading displayed after the reels stop.
`value`	Coupon or reward code copied to the clipboard.
`subtitle`	Supporting message, such as expiry or terms.
`probability`	Relative chance of winning this reward.

📘
Give Each Reward Its Own Symbol
Nothing stops two rewards sharing a symbol, but the user has no way to tell them apart on the reels. A distinct symbol per reward makes the result feel earned rather than arbitrary.

Probability Workflow

The values are relative weights, not percentages. For example, you have set the rewards section as:

Reward	Probability
10% OFF	`2`
Free Shipping	`1`
Gift Card	`1`

The first reward is twice as likely to be selected as the other two. Setting a value to zero keeps the reward in the list but makes it impossible to win.

Troubleshoot and FAQs

Q. Why do all three reels always show the same symbol?

A. That is how the template works. It picks one reward first, then lands every reel on that reward's symbol. There is no losing combination.

Q. Why do the symbols show as empty boxes or question marks?

A. The device may not support that symbol. Test every symbol you add on both Android and iOS before publishing, and replace any that do not render.

Q. Why does a symbol stop half in and half out of the reel window?

A. The reel cell height was changed in the styles but not in the engine, or the other way around. Both must stay at 74px.

Q. Why does the machine take longer than my spinDurationSeconds value?

A. That value sets the first reel only. The second and third stop after it, one after another, so the full sequence takes about a second longer than the value you set.

Q. Why can't the user play a second time?

A. The Pull button is disabled once the reels start, and the message moves to the reward screen when they stop. Each user gets one pull per message.

Q. Why doesn't anything happen when I click Claim Reward?

A. Verify that claimButton.url has been replaced with a valid deeplink and that the deeplink is registered in your app.

Q. Why doesn't the message close when I click the close button?

A. The data-smt-action="SMTInAppClose" attribute may have been removed from the close button. Restore the attribute to enable the SDK to close the message correctly.

Q. Why doesn't the reward code copy on some devices?

A. Some app webviews restrict clipboard access. If copying is unavailable, users can still view and manually enter the reward code.

Q. Why does the message render as garbled text?

A. A non-ASCII character may have been pasted into the file. Replace emoji, smart quotes, dashes, and currency symbols with unicode escapes.

Q. Why doesn't the template render at all?

A. The SDK block may have been modified or reordered, or the Netcore Smartech SDK may not be integrated into your app correctly. Ensure the SDK block remains unchanged and is loaded in the required order.

Updated about 1 hour ago

Did this page help you?
